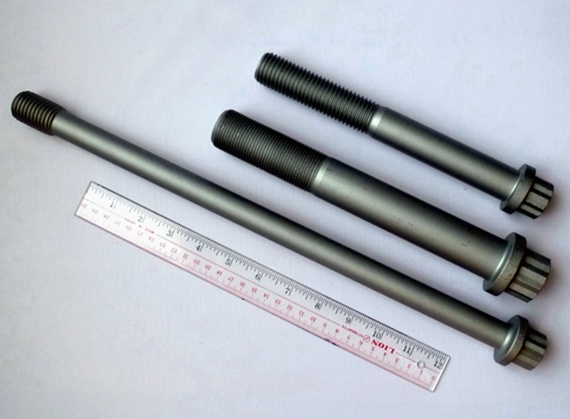

The three bolts above are inside the 930E-4 wheel motors. The OEM prices are extremely high, $610.34 for 58B-98-10700 (the one in middle). We are the only aftermarket manufacturer making the three bolts. We have sold over 2,000 pcs of these bolts since 2015 and had no issues at all.

We custom make 58F-30-00080 bolt for a Canadian wheel motor rebuilder. The 58F-30-00080 bolt is inside the 930E-2 wheel motor and is 0.5"shorter than 58B-98-10700. They used to machine it 0.5"shorter. Now we custom make it for the rebuilder.

Our 58B bolts have higher Elongation % than GE’s. This indicates better safety and good low temperature performance.

		Pamic Fasteners Meet Industry Standards
	Part Number	Industry Satandard	Description	Weight, kg
1	01643-31232	ASTM F436M Standard for Metric Washers(Hardness HRC 38-45)	Washer(Metric)	0.009
2	01643-31445	ASTM F436M Standard for Metric Washers(Hardness HRC 38-45)	Washer(Metric)	0.018
3	01643-31645	ASTM F436M Standard for Metric Washers(Hardness HRC 38-45)	Washer(Metric)	0.019
4	01643-32060	ASTM F436M Standard for Metric Washers(Hardness HRC 38-45)	Washer(Metric)	0.033
5	01643-32460	ASTM F436M Standard for Metric Washers(Hardness HRC 38-45)	Washer(Metric)	0.054
6	01643-32780	ASTM F436M Standard for Metric Washers(Hardness HRC 38-45)	Washer(Metric)	0.089
7	01643-33080	ASTM F436M Standard for Metric Washers(Hardness HRC 38-45)	Washer(Metric)	0.102
8	EM5451	SAE J429 Grade 8 Bolt ,Hardness 33-39, TS >150 ksi, Elongation >12%	Stud with head	1.85
9	EM5452	SAE J429 Grade 8 Bolt ,Hardness 33-39, TS >150 ksi, Elongation >12%	Stud, Wheel	0.71
10	EM5453	SAE J429 Grade 8 Bolt ,Hardness 33-39, TS >150 ksi, Elongation >12%	Stud, Wheel	0.61
11	EH0826	SAE J429 Grade 8 Bolt ,Hardness 33-39, TS >150 ksi, Elongation >12%	Stud, Wheel	1.360
12	VN3270	SAE J429 Grade 8 Bolt ,Hardness 33-39, TS >150 ksi, Elongation >12%	Bolt, Hex	1.01
13	WA4682	SAE J429 Grade 8 Bolt ,Hardness 33-39, TS >150 ksi, Elongation >12%	Bolt, Hex	1.5
14	VN3275	SAE J429 Grade 8 Bolt ,Hardness 33-39, TS >150 ksi, Elongation >12%	Bolt, Hex	1.065
15	VN9193	SAE J429 Grade 8 Bolt ,Hardness 33-39, TS >150 ksi, Elongation >12%	Bolt, Hex	1.85
16	EL5422	SAE J429 Grade 8 Bolt ,Hardness 33-39, TS >150 ksi, Elongation >12%	Bolt, Hex	4.98
17	EL0945	SAE J429 Grade 8 Bolt ,Hardness 33-39, TS >150 ksi, Elongation >12%	Bolt, Hex	6.88
18	WA5664	Class 12.9, Hardness 38-44, Tensile Strength >180 ksi, Elongation >9%	Bolt, 12 point	0.167
19	WA1589	Class 12.9, Hardness 38-44, Tensile Strength >180 ksi, Elongation >9%	Bolt, 12 point	0.285
20	WB1162	Class 12.9, Hardness 38-44, Tensile Strength >180 ksi, Elongation >9%	Bolt, 12 point	0.71
21	WA5660	Class 12.9, Hardness 38-44, Tensile Strength >180 ksi, Elongation >9%	Bolt, 12 point	1.41
22	WA4817	Class 12.9, Hardness 38-44, Tensile Strength >180 ksi, Elongation >9%	Bolt, 12 point	1.01
23	GE0068	Class 12.9, Hardness 38-44, Tensile Strength >180 ksi, Elongation >9%	Bolt, 12 point	1.08
24	GE1491	Class 12.9, Hardness 38-44, Tensile Strength >180 ksi, Elongation >9%	Bolt, 12 point	1.55
25	TA2572	SAE J995, Grade 8 Nuts	Nut,flange	0.274
26	WB1134	SAE J995, Grade 8 Nuts	Nut,flange	0.433
27	WA0404	SAE J995, Grade 8 Nuts	Nut, Hex	0.423
28	WA5659	SAE J995 Grade 8 Washer	Washer	0.018
29	WA0366	SAE J995 Grade 8 Washer	Washer	0.061
30	WA0368	SAE J995 Grade 8 Washer	Washer	0.093
31	GE0449	SAE J995 Grade 8 Washer	Washer	0.096
32	TY2149	SAE J995 Grade 8 Washer	Washer	0.125
33	EF3368	SAE J995 Grade 8 Washer	Washer	0.17

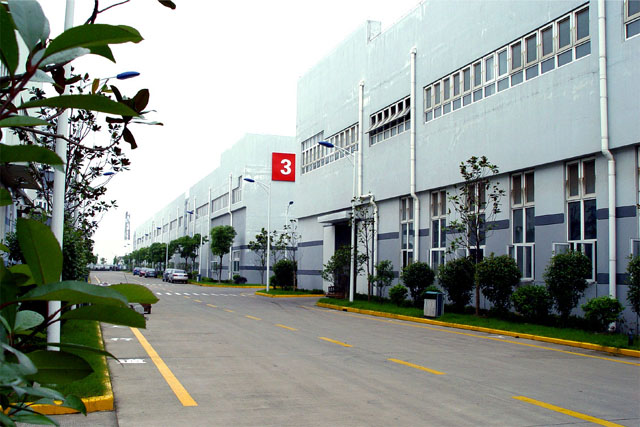

	Operating in a new industrial zone with 67,000 square meter land and 32,000 square meter building area we have over 200 equipments to make various types of fasteners.

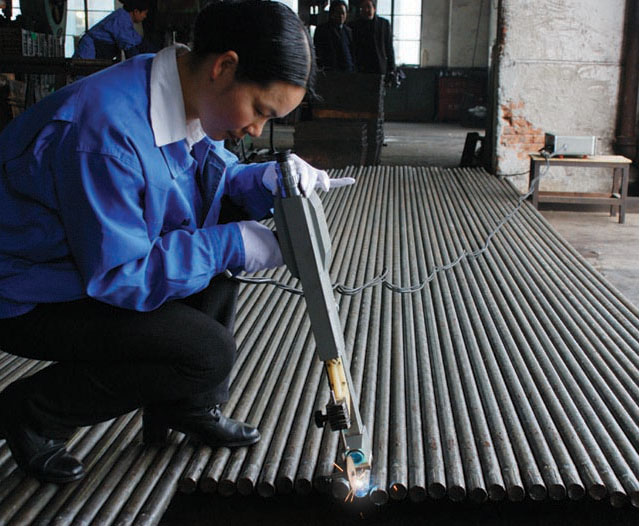

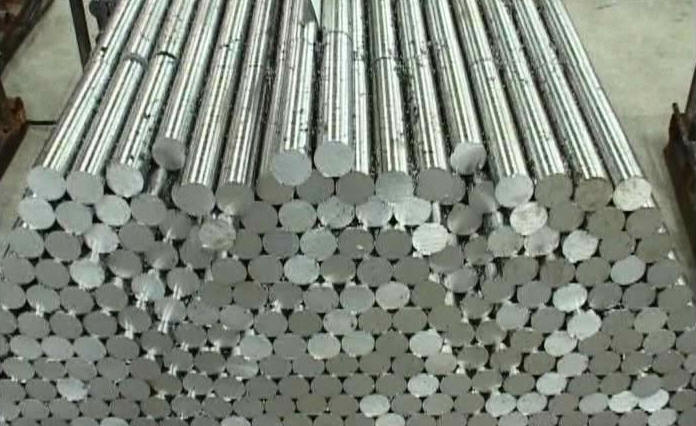

	Quality assurance begins at incoming material inspection. In addition to the chemical composition analysis we use Spectrum Detection Technology to test material rod by rod.
	Coreless grinding to assure surface accuracy and remove any possible cracks.

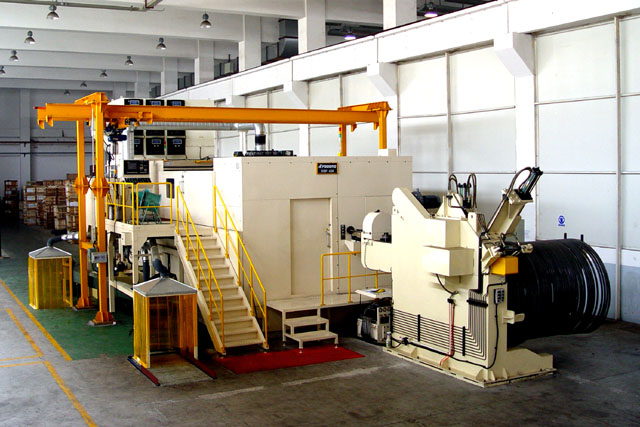

	Multi-station cold forging head machine for bolts up to M36 or 1.5" of length 350mm. It is the largest cold heading machine in Asia.

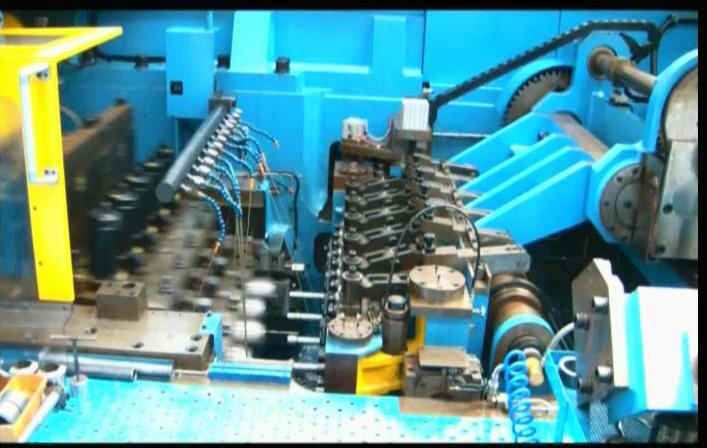

	Multi-Station Auto Cold Forging Machine

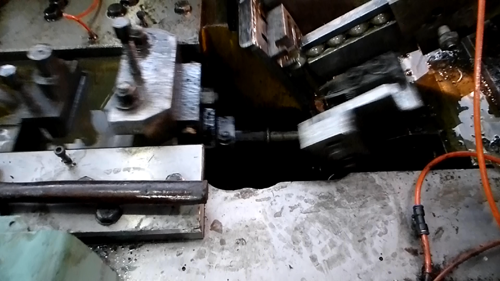

	Hot forging head machine with temperature control to avoid over burning with diameter up to 36mm or 1.5" and length up to 450mm.

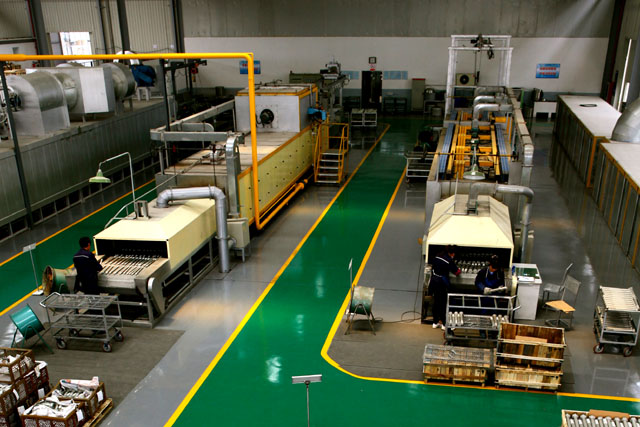

	Six heat treatment lines to meet different requirements of various hardness and diameters. Quenching and Tempering are under accurate temperature control and finished in one process.
	Two Dacromet coating lines.

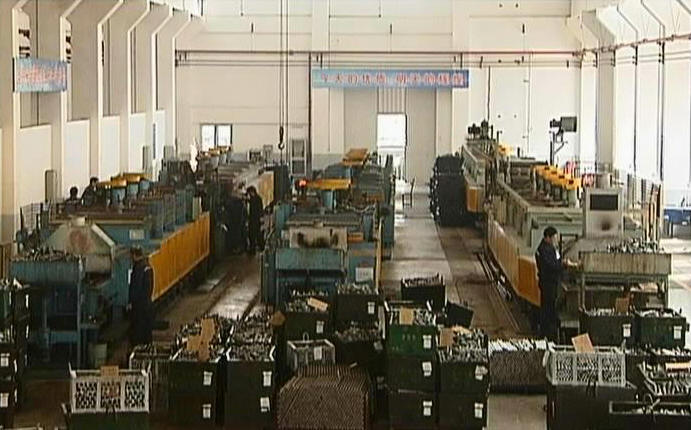

	Various auto cold heading machines.
