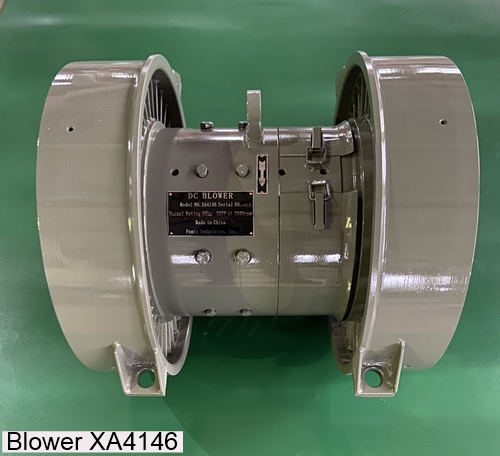

Blower 5GY19L8

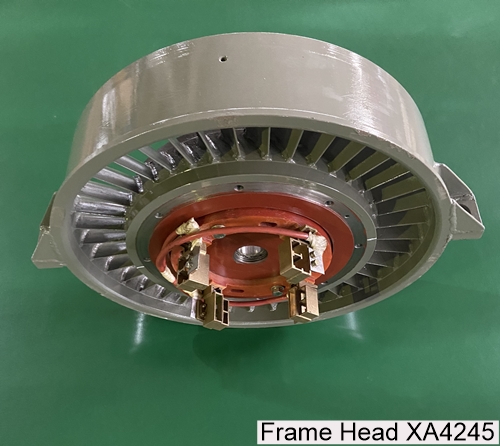

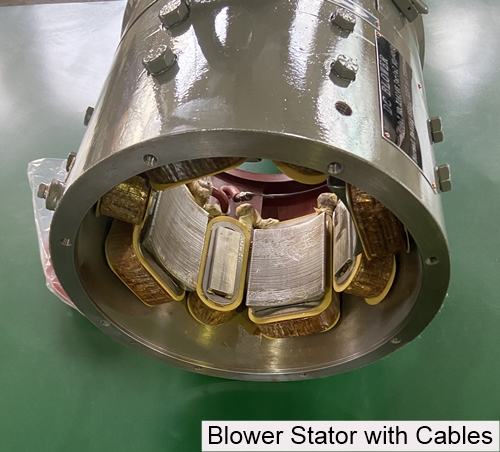

Our blower is for replacement of Komatsu XA4146 that is used on all Komatsu mining trucks. We keep make it with all parts compatible to the OEM. Stator frame is a one piece structure. Frame heads and body are annealed for less vibration and noise. We use sealed SKF bearing 6309-2Z for long life without maintenance. Stators and rotors are vaccum pressure insulated twice to reach Class H 180C degree.

     Blower specifications:

DC Motor rated power 65 hp,

Maximum Speed 3500 rpm,

Weight 363 kg, 685x675x670 mm.
